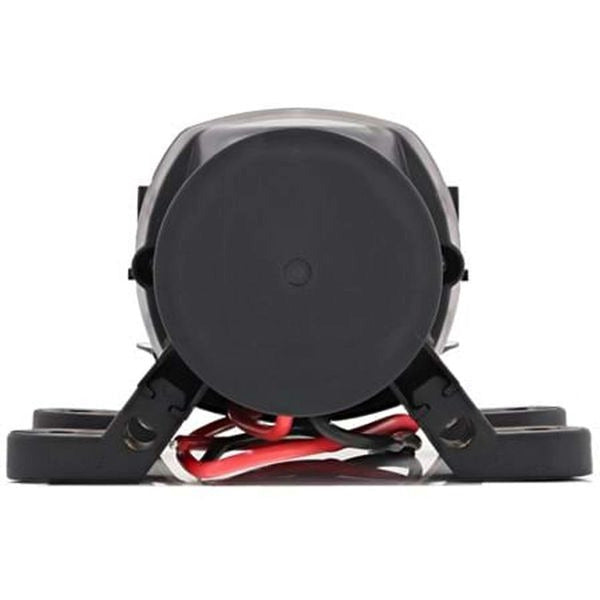

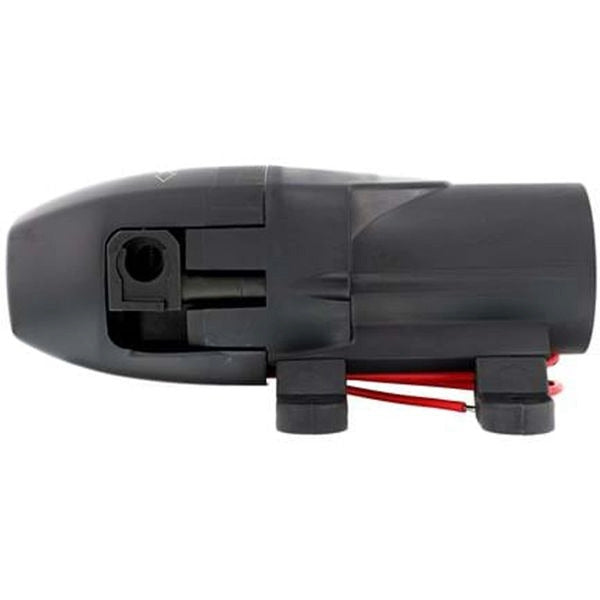

Jabsco Par-Max 1 Freshwater Pump
The Jabsco Par Max 1 water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price.
Out of stock items can be ordered and shipped out within 3-5 working days
We despatch all orders within 24 hours. Orders placed weekdays before 4pm will be shipped the same day.
Call us and speak to an expert on 0191 4297309 - (Mon - Fri / 9am - 5pm).
Pickup available at Marine Chandlery: North Shields
Usually ready in 1 hour
Jabsco Par-Max 1 Freshwater Pump
Marine Chandlery: North Shields
Unit G4 Narvik Way
Tyne Tunnel Trading Estate
North Shields NE29 7XJ
United Kingdom
The Jabsco Par Max 1 water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price.
The Jabsco Par Max 1 water pressure controlled pump is designed for vessels requiring a smooth low flow pump at an attractive low price.
Specification
- Approvals-CE, USCG 183.410, ISO 8846 (Ignition Protected), EMC/EMI, EN 61000-6-3 (residential, commercial, light industrial), RCM, WEEE
- Cut In Pressure-22 PSI (1.5 bar)
- Cut Out Pressure -35 PSI / 2.4 Bar
- Flow Rate -3.8 LPM (1 US GPM)
- Fuse-4A (order separately)
- Height -68mm (2.68")
- Length-165mm (6.5")
- Material-Upper* and Lower Housing: Fibre reinforced polypropylene, Check Valve Retainer*: Polypropylene, Diaphragm*: Santoprene, Check Valves*, Switch diaphragm & PH Seals: EPDM, PH Fasteners: Stainless Steel, Slide-In Feet: Rubber, Motor Casing: Enclosed in protective plastic casing. (* in contact with water)
- Series-Par Max 1
- Temperature Range-0°C - 43°C (32ºF - 110ºF)
- Type-Fresh Water Pumps
- Voltage Description-12V DC (9V - 13.6V DC)
- Weight-0.6 kg (1.4 lb)
- Width-103mm (4")
- Brand-Jabsco
- Warranty-3 Years
- Connections Description-2x 3/8" (10mm) or 2x 1/2" (13mm) bore hose barbs
- Maximum Recommended Head-1.5 Metres
- Model-42630-3512-3C
- Replaces-WP-006, Jabsco 42630-2992-P, 42630-2900 & 42630-3992-P
- Self Primes up to-1.8 Metres (5.9 Feet)
- Wire Size-18 AWG (1mm2)
- Amps Description-3.5A maximum at 35 PSI (2.4 Bar)
