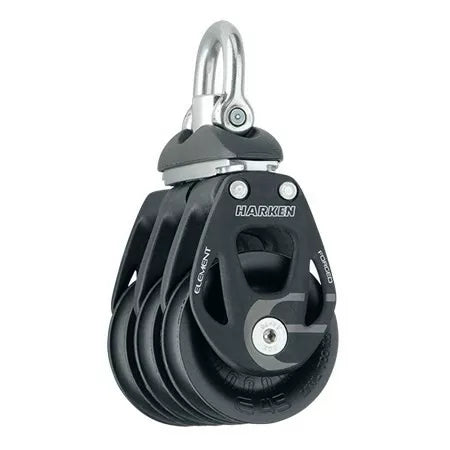

45mm Element Triple Swivel Block

SKU: 6240
HARKEN SALE
Sale price£119.81 Regular price£140.95
Save £21.14
In stock

Pickup available at Marine Chandlery: North Shields

Usually ready in 1 hour

45mm Element Triple Swivel Block

45mm Element Triple Swivel Block

Marine Chandlery: North Shields

Pickup available, Usually ready in 1 hour

Unit G4 Narvik Way
Tyne Tunnel Trading Estate
North Shields NE29 7XJ
United Kingdom

+441914297309
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Specification:

heave Ø (mm) 45 mm
Sheave Ø (in) 1 3/4 in
Length (mm) 108 mm
Length (in) 4 1/4 in
Weight (g) 265 g
Weight (oz) 9.3 oz
Shackle pin Ø (mm) 6 mm
Shackle pin Ø (in) 1/4 in
Maximum line Ø (mm) 12 mm
Maximum line Ø (in) 1/2 in
Maximum working load (kg) 1050 kg
Maximum working load (lb) 2315 lb
Breaking load (kg) 2100 kg
Breaking load (lb) 4630 lb
