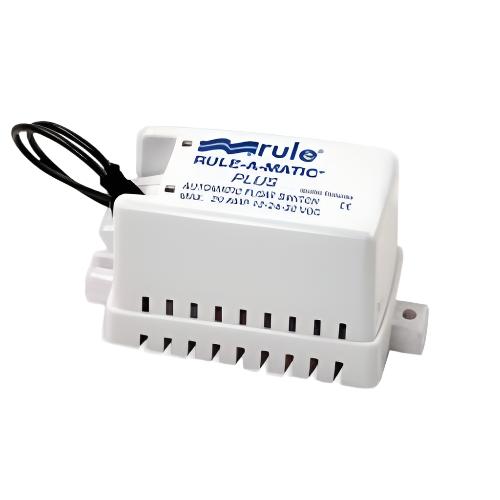

Rule-A-Matic Plus Automatic Float Switch – 12/24V Marine Bilge Pump Control
The Rule Rule-A-Matic Plus Automatic Float Switch provides reliable, hands-free control of bilge pumps in marine applications. Designed to prevent debris ingress and jamming, it activates a bilge pump automatically when water levels rise, helping keep the bilge dry and your vessel safe.
Out of stock items can be ordered and shipped out within 3-5 working days
We despatch all orders within 24 hours. Orders placed weekdays before 4pm will be shipped the same day.
Call us and speak to an expert on 0191 4297309 - (Mon - Fri / 9am - 5pm).
Pickup currently unavailable at Marine Chandlery: North Shields
Rule-A-Matic Plus Automatic Float Switch – 12/24V Marine Bilge Pump Control
Marine Chandlery: North Shields
Unit G4 Narvik Way
Tyne Tunnel Trading Estate
North Shields NE29 7XJ
United Kingdom
The Rule Rule-A-Matic Plus Automatic Float Switch provides reliable, hands-free control of bilge pumps in marine applications. Designed to prevent debris ingress and jamming, it activates a bilge pump automatically when water levels rise, helping keep the bilge dry and your vessel safe.
The Rule Rule-A-Matic Plus Automatic Float Switch provides reliable, hands-free control of bilge pumps in marine applications. Designed to prevent debris ingress and jamming, it activates a bilge pump automatically when water levels rise, helping keep the bilge dry and your vessel safe.
Product Description
The Rule Rule-A-Matic Plus Automatic Float Switch is engineered to offer precise, dependable control of bilge pumps in boats. When installed in a bilge, the float switch detects rising water levels and automatically activates a connected bilge pump, drawing water out to maintain safe bilge conditions. The switch is designed to operate when the water reaches 2 inches (51mm) and shuts off at 3/4 inch (19mm), providing efficient water management without requiring constant monitoring.
The switch incorporates a small test tab that allows manual activation, enabling easy verification of correct operation. Constructed with protective strainer edges around the base, the switch prevents debris from entering the housing, reducing the risk of jamming or malfunction. Installation is simple, with two fixing holes at either end for secure mounting and pre-stripped wires for fast connection to your 12V or 24V electrical system.
Compact yet robust, the Rule-A-Matic Plus Float Switch is suitable for a wide range of marine vessels and bilge pump systems. Its high current capacity ensures compatibility with most 12V, 24V, and even 32V bilge pumps, making it a versatile and reliable choice for automated bilge management.
Specifications
| Specification | Details |
|---|---|
| Brand | Rule |
| Type | Rule-A-Matic Plus Automatic Float Switch |
| Voltage | 12V / 24V / 32V DC |
| Maximum Amps | 20A (12V), 10A (24V), 6.5A (32V) |
| Height | 73mm |
| Length | 133mm |
| Width | 54mm |
| Fixing Hole Centres | 121mm |
| Operation Level | On at 2" (51mm), Off at 3/4" (19mm) |
| Mounting | Floor mount using two fixing holes |
| Wiring | Pre-stripped wires for easy connection |
| Debris Protection | Strainer edges to prevent jamming |
| Applications | Automatic control of bilge pumps on boats |
| Warranty | 1-year limited manufacturer’s warranty |
