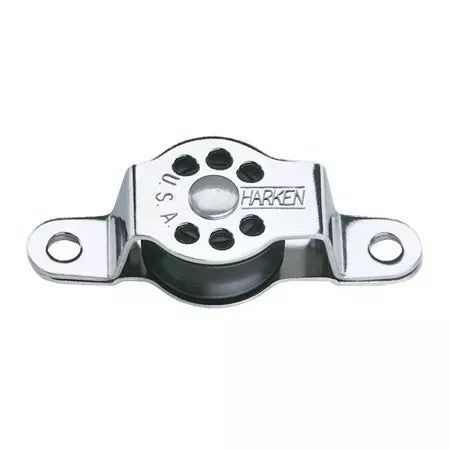

Harken 22mm Micro Cheek Block
Low-friction Micro blocks are compact and lightweight. They are ideal for sailboards, smaller dinghies, and lightly loaded control lines on boats of all sizes.
Specification:
Weight (oz) | .75 oz |
Sheave Ø (mm) | 22 mm |
Sheave Ø (in) | 7/8 in |
Length (mm) | 64 mm |
Length (in) | 2 1/2 in |
Weight (g) | 21 g |
Maximum line Ø (mm) | 6 mm |
Maximum line Ø (in) | 1/4 in |
Fasteners (mm) | 5 RH mm |
Fasteners (in) | #10 RH in |
Maximum working load (kg) | 91 kg |
Maximum working load (lb) | 200 lb |
Breaking load (kg) | 544 kg |
Breaking load (lb) | 1200 lb |
Mounting hole spacing (mm) | 52 mm |
Mounting hole spacing (in) | 2 1/16 in |
