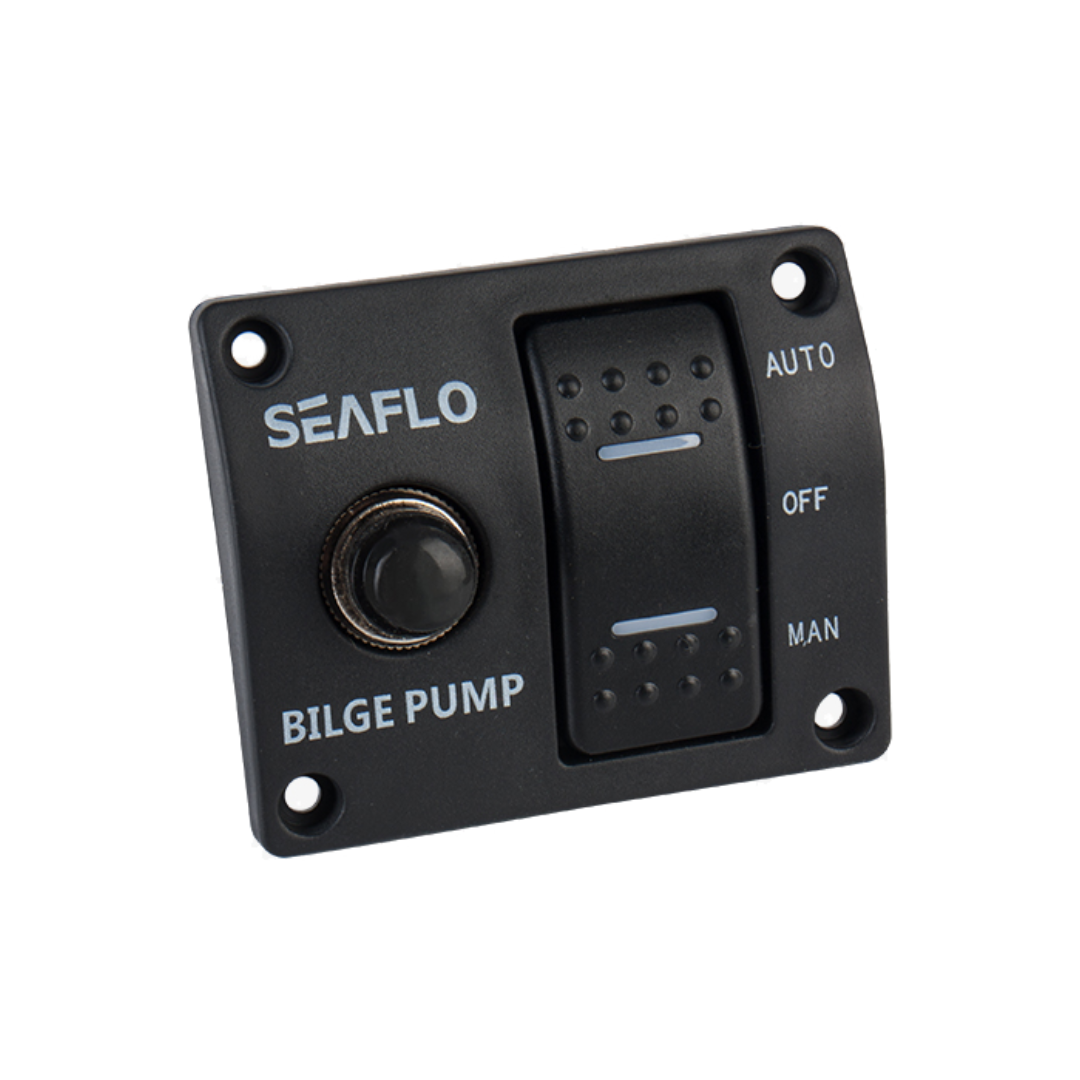

Seaflo Bilge Pump Panel Switch SFSP-015-02

The Seaflo SFSP-015-02 is a 3-way marine bilge pump control panel switch (Automatic / Off / Manual) with built-in 15 A circuit breaker and LED indicator. It’s suitable for both 12 V and 24 V systems and designed to reliably manage a bilge pump driven by a float switch.

Product Description

The Seaflo SFSP-015-02 is a compact, user-friendly switch panel designed to control your bilge pump in multiple modes:

• Automatic – when in this mode, the switch panel allows your bilge pump (with float switch) to turn itself on and off as water levels change.

• Off – disables the pump for when manual intervention or maintenance is required.

Manual – forces the pump on (typically spring returns to Off when released, providing a “fail-safe”)

Some of its features include:

• A built-in 15 A circuit breaker/fuse to protect against over-current or short circuits.

• An LED indicator that lights when the switch is in an ON position, giving a visual cue that the pump circuit is active.

• A black plastic panel housing (as opposed to the aluminum version) for corrosion resistance and marine compatibility.

• Multi-voltage capability (12 V and 24 V systems) making it compatible with a broad range of marine setups.

• A “fail-safe” spring return from Manual to Off position, to avoid leaving the pump continuously running accidentally.

It’s designed to work with pumps equipped with automatic float switches; by switching between manual and automatic modes, you can override or allow automatic operation as needed.

Be sure to mount wiring above water level, and use sealed butt connectors and marine grade sealant to protect against corrosion.

Specification
