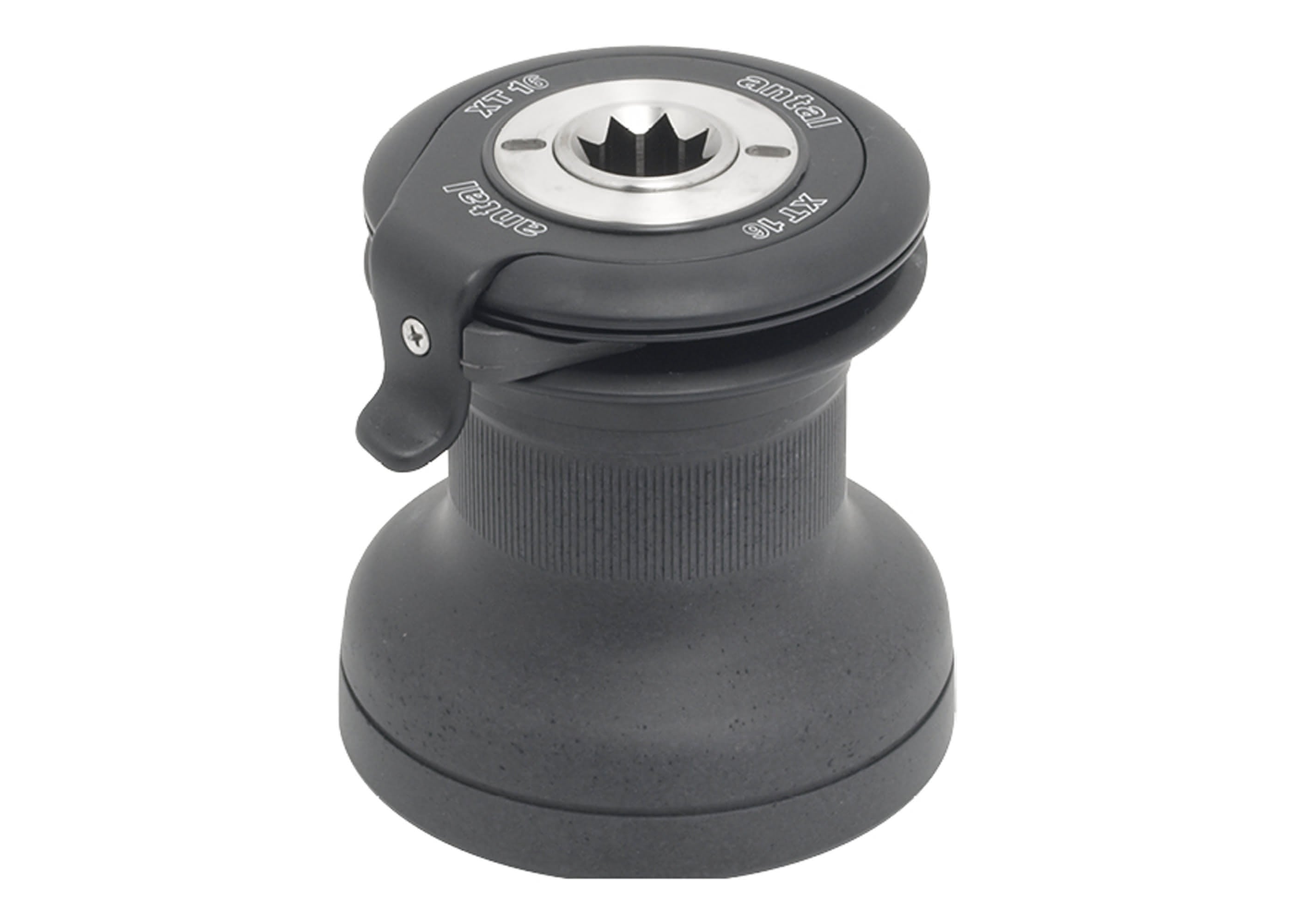

XT16.2 2-Speed Aluminium Self-Tailing Winch
Pickup available at Marine Chandlery: North Shields
Usually ready in 1 hour
XT16.2 2-Speed Aluminium Self-Tailing Winch
16
Marine Chandlery: North Shields
Unit G4 Narvik Way
Tyne Tunnel Trading Estate
North Shields NE29 7XJ
United Kingdom

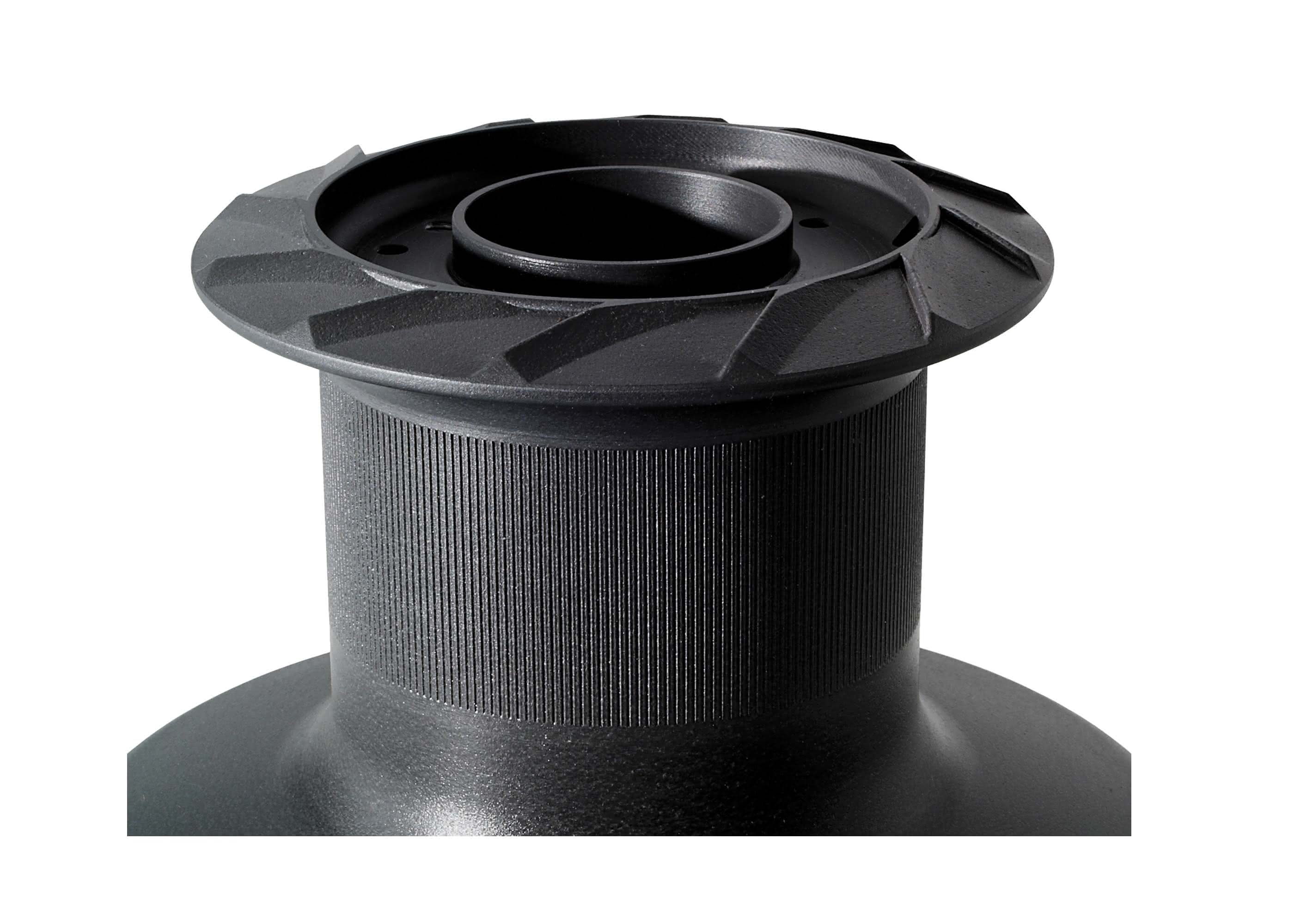

The new XT16 self-tailing winch from Antal features a completely modern design while maintaining the renowned Antal quality and precision. It accommodates various rope diameters, ensuring maximum grip with its vertical knurls. The base, crafted from solid material, is significantly lighter and stronger than cast parts, and the winch can be easily removed from the base for maintenance. Available in both single-speed and two-speed versions, the 2-speed XT16.2 winch includes an additional gear for faster, more efficient hauling. This winch is exceptionally lightweight and versatile, making it an excellent choice for a wide range of applications.
| Attribute | Details |
|---|---|
| Article Number | 44257 |
| Model No. | XT16.2AL |
| Size | 16 |
| For Rope Ø | 6 - 10 mm |
| Number of Gears | 2 |
| Power Gear Ratio 1st Gear | 7:1 |
| Power Gear Ratio 2nd Gear | 14:1 |
| Base-Ø | 112 mm |
| Drum-Ø | 71 mm |
| Height | 11.9 cm |
| Hole Diameter | 6 mm |
| Hole Circle Diameter | 82 mm |
| Weight | 2.6 kg |
| Finish | Aluminium (black) |
Technical Data:
| Size | 16.2 XT |
| Material | Black anodised aluminium |
| Gear ratio 1st gear | 1:1 |
| Gear ratio 2nd gear | 2:1 |
| Power transmission 1st gear | 7:1 |
| Power transmission 2nd gear | 14:1 |
| Recovery speed 1st gear | 229 mm |
| Recovery speed 2nd gear | 115 mm |
| Weight: | 2.6 kg |
| Drum-Ø | 71 mm |
| Base-Ø | 112 mm |
| Height | 119 mm |
| Rope-Ø | 6-10 mm |
| Fixing screws | 5 x 6 mm |
| Screw pattern-Ø | 82 mm |
Note: The recovery speed is the length of the line recovered with one 360-degree turn of the winch handle.
