Tohatsu

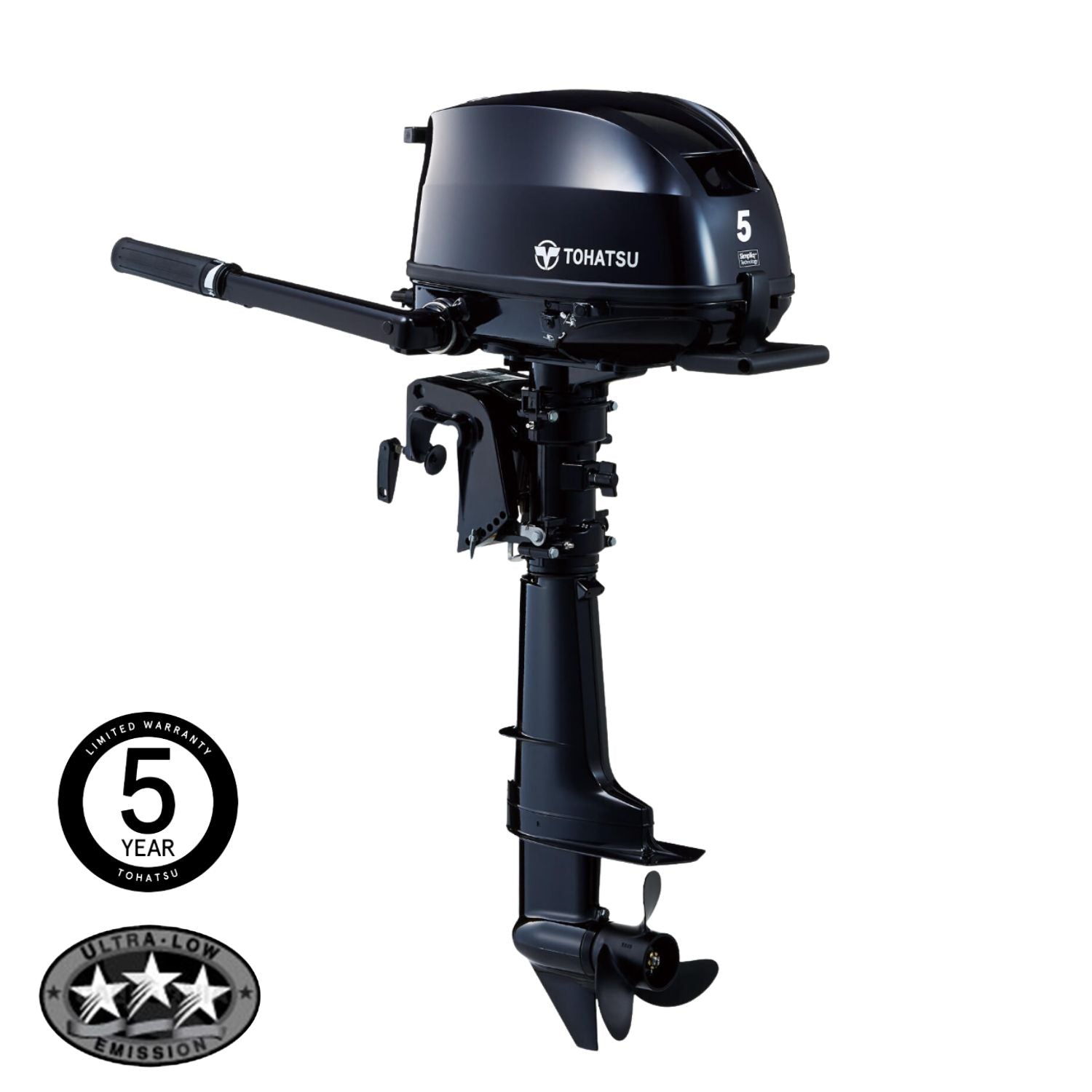

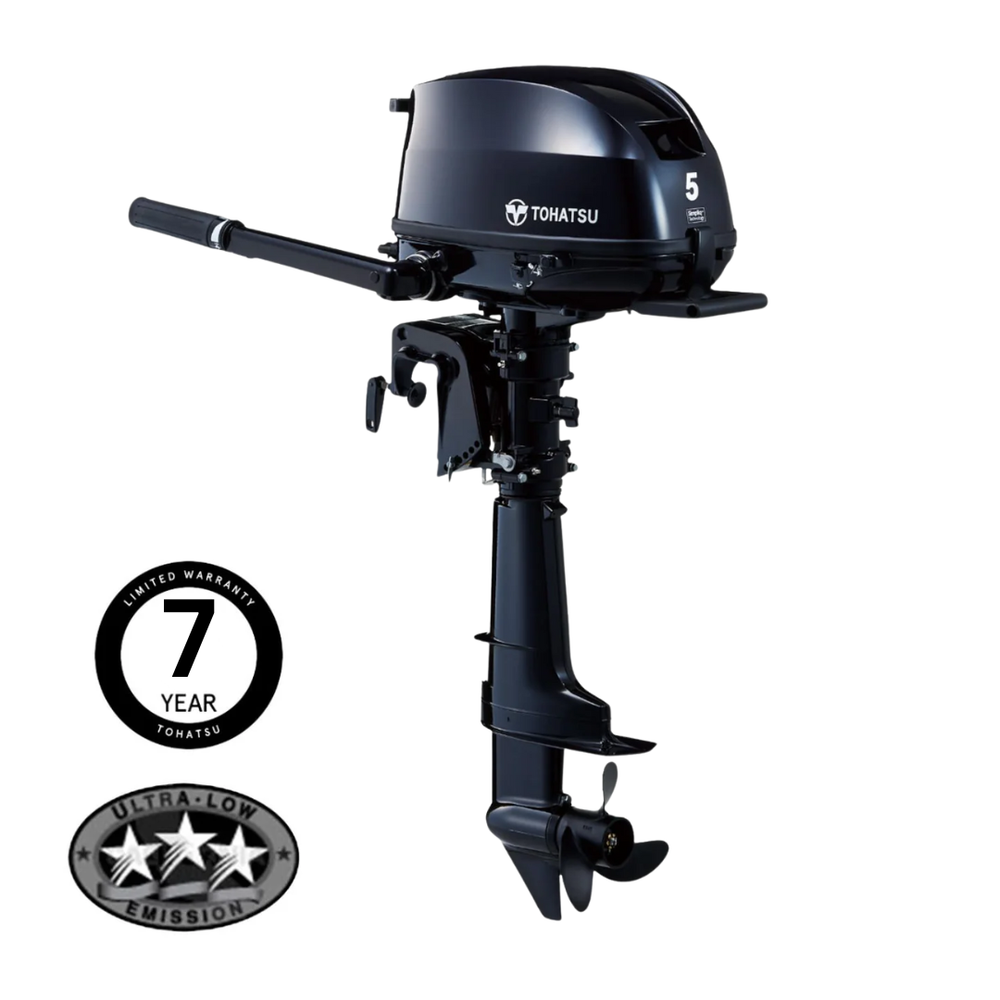

Tohatsu 5HP 4-Stroke Outboard Engine Long Shaft
Official Tohatsu outboard — sold, inspected & registered by Marine Chandlery.
Tax included. View shipping policy
Klarna & PayPal available at checkout
The Tohatsu 5HP 4-Stroke Outboard Engine (Long Shaft) is a lightweight, portable, and fuel-efficient motor designed for dinghies, inflatables, and small sailboats. Built with Tohatsu’s renowned reliability, this engine delivers smooth, quiet operation and impressive fuel econo...
The Tohatsu 5HP 4-Stroke Outboard Engine (Long Shaft) is a lightweight, portable, and fuel-efficient motor designed for dinghies, inflatables, and small sailboats. Built with Tohatsu’s renowned reliability, this engine delivers smooth, quiet operation and impressive fuel economy, making it an ideal choice for leisure boating, tender use, or auxiliary power.
Description
The Tohatsu 5HP Long Shaft 4-Stroke Outboard Engine combines portability, performance, and reliability in a compact design. Weighing just under 26 kg, it is one of the lightest in its class, making it easy to transport, fit, and store.
Equipped with a long shaft for deeper transoms and sailing applications, it provides excellent control and thrust, even in choppier waters. Its water-cooled, single-cylinder 4-stroke engine ensures smooth and quiet running while delivering excellent fuel economy.
The engine features a forward-neutral-reverse gear shift, an easy-to-use tiller handle with throttle control, and an integrated carrying handle for added convenience. Built with durability in mind, the Tohatsu 5HP is designed for long-lasting use in both freshwater and saltwater environments.
Perfect for yacht tenders, inflatable boats, and auxiliary sailing applications, this outboard engine provides dependable power in a compact, efficient package.
Specification Table
| Engine | 4 Stroke 1 Cylinder |
|---|---|
| Output | 5 ps (3.7 kw) |
| Displacement | 123 cc (7.5 cu.in.) |
| Bore x Stroke | 59 x 45 mm (2.32 x 1.77 in) |
| Max. RPM Range | 4,500 - 5,500 |
| Starting | Manual |
| Control Type | Tiller Handle |
| Gear Shift | Forward - Neutral - Reverse |
| Gear Ratio | 2.15:1 |
| Propeller Selection Range | 6" - 9" |
| Transom Height | 15", 20" |
| Fuel | Unleaded Gasoline (87 Octane) |
| Oil Type | NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ) |
| Oil Capacity | 450 mL (15 fl. oz.) |
| Fuel Tank | Internal Fuel Tank Models (MFS5DD) : 1.1L (0.29 US Gal.) Integral Tank (Includes an External Fuel Tank Connector installed on engine to allow user to use an optional external fuel tank) External Fuel Tank Models (MFS5DS) : 12L (3.1 US Gal.) Separate Fuel Tank |
| Weight* | 25 kg (55 lbs.) |
| Alternator Output | Optional: 12V, 60W, 5A |
| Digital CD Ignition System | Standard |
| Start In Gear Protection | Standard |
| Thermostat Controlled Cooling System | Standard |
| Through-The-Prop Exhaust | Standard |
| Oil Pressure Warning | Standard |
| Shallow Water Drive | Standard |
Before your engine leaves us, our engineers perform a thorough pre-delivery inspection — checking all mechanical components, flushing the system, and confirming everything is running as it should.
The entire process is recorded using the CitNow platform, giving you a professional, time-stamped video walkthrough of your engine's condition at the point of sale.
The CitNow video link is sent straight to you via SMS or email — before collection or dispatch — so you have full confidence in the condition of your new engine.
After purchase, our team submits your engine's warranty registration directly with Tohatsu. You don't need to fill in any forms or visit any websites.
The 7-year warranty covers manufacturing defects and component failures under normal use — giving you long-term protection and real peace of mind on the water.
Because we're an official Tohatsu dealer, your warranty is fully valid and backed by the manufacturer. Buying from an unauthorised source can void your warranty entirely.
- 7-year warranty registered on your behalf
- CitNow PDI video — free with every engine
- Fully inspected before delivery
- Marine specialists since 1990
- North Shields store — same-day collection
- Expert after-sales support
