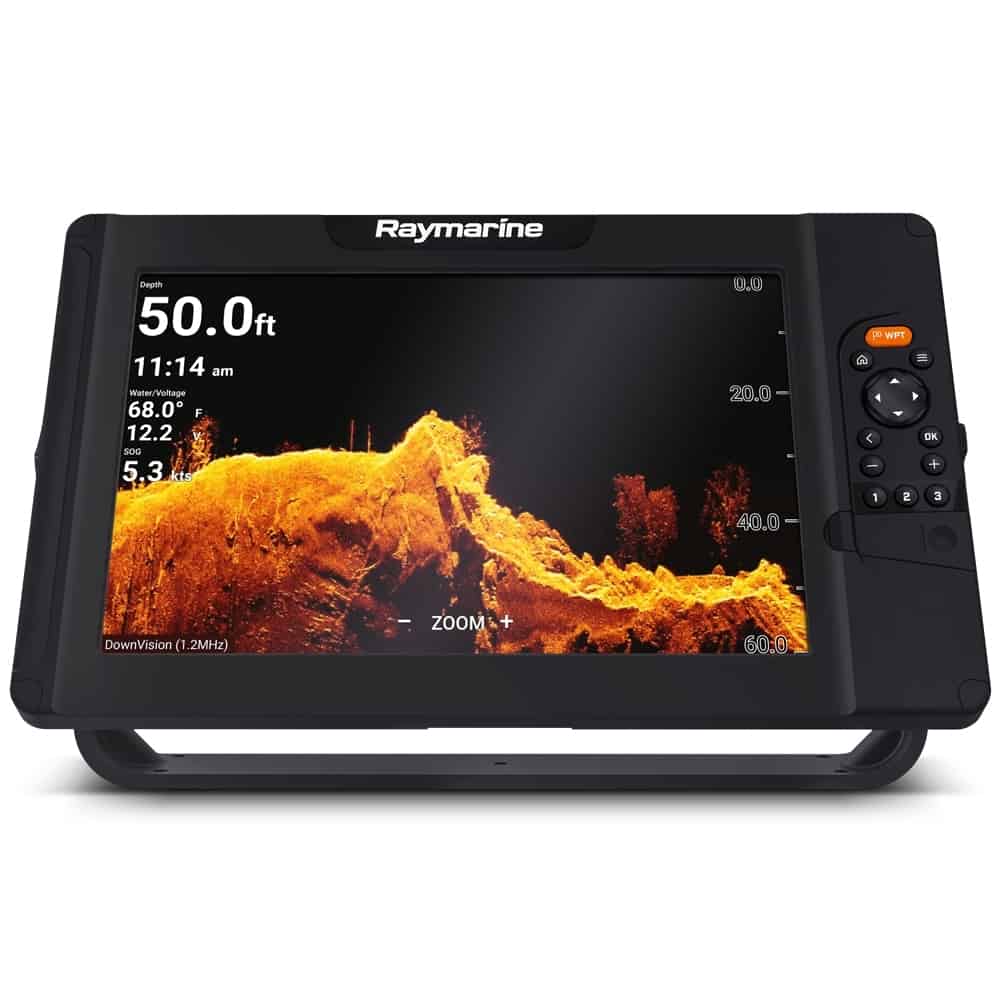

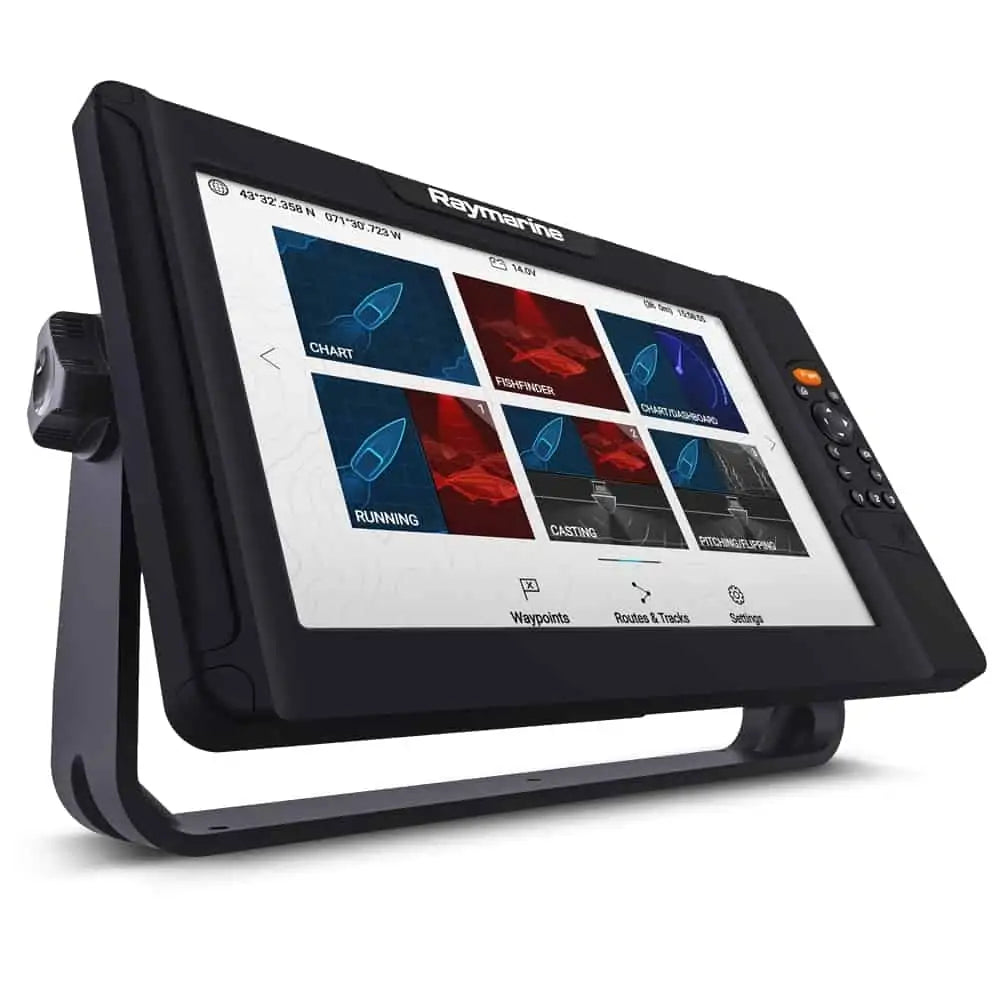

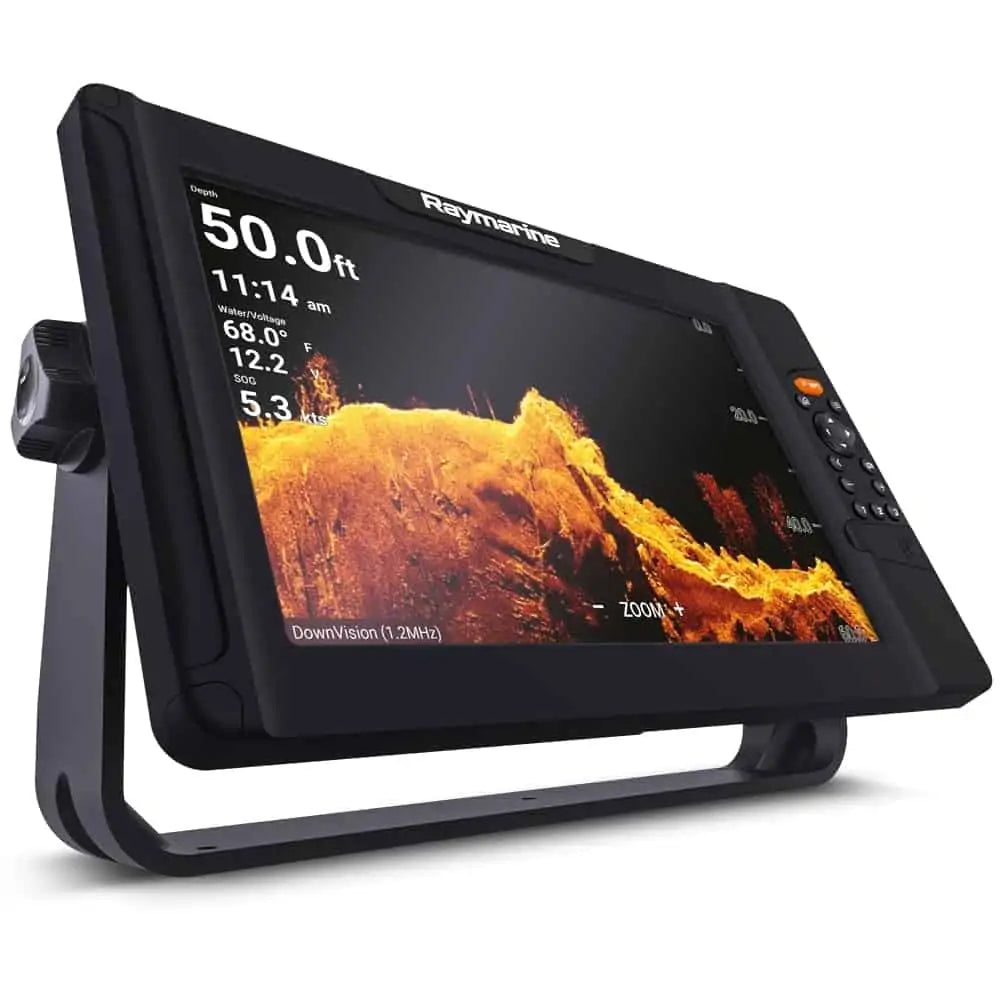

Element 9 HV Sonar & GPS Fishfinder

The Raymarine Element 9 HV CHIRP Sonar / GPS series gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

Available options:

E70534 – Display Only
E70645-05-WEU – With West Europe Lighthouse Chart and HV-100 Transom Transducer

The Navionics+ Small chart is a prepaid SD card which allows you to download one small area navionics+ chart. See navionics.com for coverage.

The Raymarine Lighthouse chart is a prepaid SD card which allows you to download one region e.g. UK.

If you require a through hull transducer, this can be purchased separately. See accessories tab.

Turn Up the Resolution with HyperVision™

HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D

1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)

Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)

Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom tracking, and depths up to 900ft

Features

Bright and Rugged – Sunlight viewable displays with integrated GPS/GNSS receiver.

Superior HyperVision™ – 1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.

All-in-one Transducer* – Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.

RealVision™ 3D Built-In – Accurately identify the location of ledges, channel beds, and other contour changes.

Fast Quad-Core Processor – For instantaneous chart re-draw and sharp 3D imaging.

*Transducer optional – See available options.
